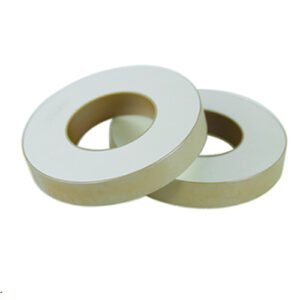

What Are Piezoelectric Ceramics for Ultrasonic?

Piezoelectric ceramics are a class of smart materials that exhibit the piezoelectric effect: generating an electric charge when subjected to mechanical stress (direct piezoelectric effect) and undergoing mechanical deformation when exposed to an electric field (inverse piezoelectric effect). These properties make them indispensable in ultrasonic transducers, which convert electrical energy into ultrasonic waves and vice versa. This article explores the history, principles, functions, and applications of piezoelectric ceramics, with a particular focus on their pivotal role in ultrasonic welding technology.

Historical Development

The story of piezoelectric ceramics began in 1880 when French physicists Pierre and Jacques Curie discovered the piezoelectric effect in quartz crystals. However, natural materials like quartz had limited applications due to their low piezoelectric coefficients. The breakthrough came in the 1940s with the development of barium titanate (BaTiO₃), the first synthetic piezoelectric ceramic. This material offered higher piezoelectric activity and could be molded into various shapes, revolutionizing industries such as sonar and early ultrasound devices.

In the 1950s, researchers developed lead zirconate titanate (PZT), a solid solution of lead zirconate (PbZrO₃) and lead titanate (PbTiO₃). PZT ceramics exhibited even greater piezoelectric properties than barium titanate, making them the industry standard for ultrasonic transducers. Today, PZT remains the most widely used piezoelectric material, though newer compositions like potassium sodium niobate (KNN) and bismuth ferrite (BiFeO₃) are emerging as lead-free alternatives due to environmental concerns.

Working Principle

The piezoelectric effect in ceramics arises from their crystalline structure. In their natural state, piezoelectric ceramic crystals are randomly oriented, resulting in no net polarization. During manufacturing, the ceramic is heated above its Curie temperature (the temperature at which it loses its piezoelectric properties) and subjected to a strong electric field. This process, called poling, aligns the crystal domains, creating a permanent polarization.

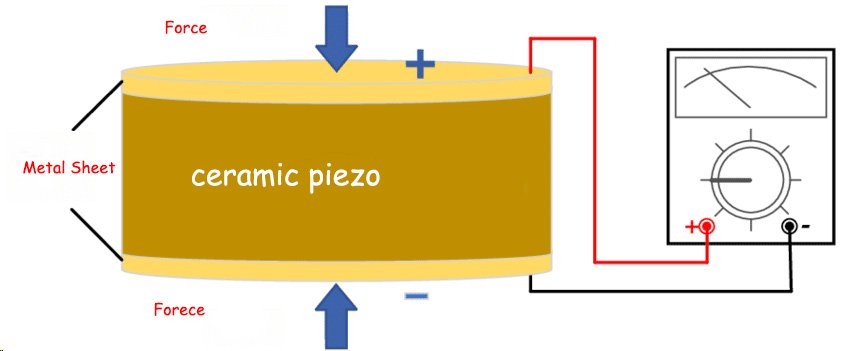

When an external mechanical stress (e.g., pressure) is applied to the poled ceramic, the crystal structure deforms, causing a displacement of positive and negative charges. This separation of charges generates an electric voltage across the material—the direct piezoelectric effect. Conversely, when an electric field is applied, the ceramic undergoes a dimensional change (expansion or contraction)—the inverse piezoelectric effect. This bidirectional energy conversion is the foundation of ultrasonic transducer operation.

Key Functions in Ultrasonic Transducers

In an ultrasonic transducer, piezoelectric ceramic plates or elements serve as the core components responsible for:

Generating Ultrasonic Waves: When an alternating electric current (AC signal) is applied to the ceramic element, it vibrates at the same frequency as the current, producing ultrasonic waves. These waves are used in applications like ultrasonic cleaning, welding, and medical imaging.
Receiving Ultrasonic Signals: In reverse, when ultrasonic waves strike the ceramic element, they generate a small electric signal. This function is crucial in applications such as ultrasonic testing (NDT) and sonar systems, where echoes are detected and analyzed.
Frequency Tuning: The resonant frequency of the ceramic element determines the operating frequency of the transducer. By adjusting the dimensions and composition of the ceramic, manufacturers can tailor transducers for specific applications, from low-frequency welding (20-40 kHz) to high-frequency medical imaging (2-20 MHz).

Applications

Piezoelectric ceramics play a vital role in numerous industries, with ultrasonic welding being a particularly significant application:

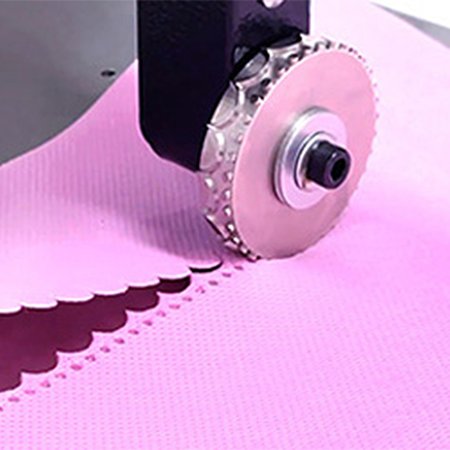

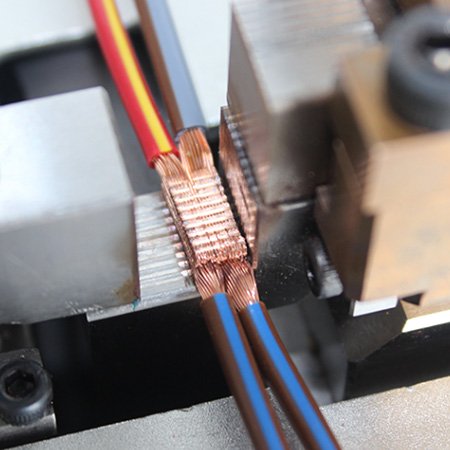

Industrial Manufacturing & Welding Applications

Other Application Areas

Medical Field: Ultrasonic imaging devices utilize the bidirectional conversion properties of piezoelectric ceramics for non-invasive internal organ detection. High-intensity focused ultrasound (HIFU) technology is used for tumor treatment and kidney stone fragmentation.
Consumer Electronics: The autofocus function in smartphone cameras, ultrasonic fingerprint recognition technology, and the efficient cleaning capabilities of ultrasonic cleaners all rely on precise control of piezoelectric ceramics.
Non-Destructive Testing (NDT): In aerospace and pipeline inspection, piezoelectric ceramic transducers detect internal defects in materials to ensure structural safety.

Conclusion

Piezoelectric ceramics are the cornerstone of ultrasonic transducer technology, playing a crucial role in modern industrial and technological advancements. Particularly in ultrasonic welding, their efficient energy conversion, precise frequency control, and environmentally friendly processing methods make them ideal for joining plastics, metals, and composite materials. As materials science advances, the development and application of new lead-free piezoelectric ceramics will further drive ultrasonic welding technology toward greater precision, efficiency, and sustainability, bringing breakthrough innovations to industries such as automotive manufacturing, electronic packaging, and medical device production.
